◆Introduction The HZ12 series combination switch have basic type,GS pad-lock tye,Key lock type,inter lock type.
every type has normal and quick stop type.
normal type use black plate and black knob.

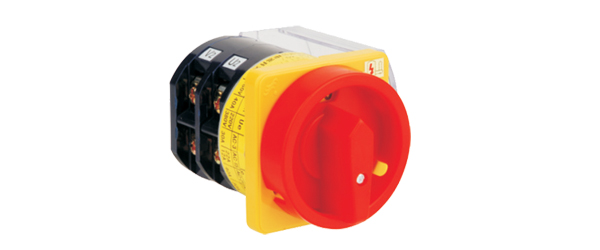

quick stop use the yellow plate and red knob.
◆Technical parameters
|
Description |
HZ12-16 |
HZ12-25 |
HZ12-40 |
|
Rated thermal currentITH |
A |
16 |
25 |
40 |
|
Rated working voltageUe |
V |
240 |
440 |
240 |
440 |
240 |
440 |
|
Rated working currnetLe |
|
|
|
|
|
|
|
|
AC-3 |
A |
|
11 |
|
15 |
|
30 |
|
AC-15 |
A |
8 |
6 |
12 |
8 |
22 |
12 |
|
AC-23 |
A |
|
11 |
|
15 |
|
30 |
|
AC-21 |
A |
|
16 |
|
25 |
|
40 |
◆Dimensions and installation
