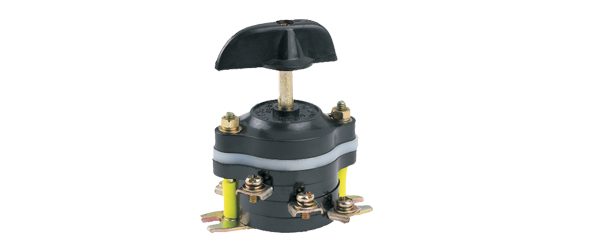

◆Introduction HZ10 Dmainly used in the circuit for unfrequent manual breaking resistiveand inductive mixed load also for control of AC motors。
◆Technical parameters
|
Description |
HZ10D-10 |
HZ10D-16 |
HZ10D-25 |
HZ10D-63 |
HZ10D-100 |
|
Rated thermal current |
ITH |
A |
10 |
16 |
25 |
63 |
100 |
|
Rated working voltage |
Ue |
V |
240 |
440 |
240 |
440 |
240 |
440 |
240 |
440 |
240 |
440 |
|
Rated working current |
Le |
|
|
|
|
|
|
|
|
|
|
|
|
AC-3 |
|
A |
|
3 |
|
4.3 |
|
6.3 |
|
|
|
|
|
AC-20A/21A/22A |
|
A |
10 |
10 |
16 |
16 |
25 |
25 |
63 |
63 |
100 |
100 |
|
DC-20A/21A |
|
A |
|
|
|
|
|
|
|
|
|
|
|
power |
|
KW |
|
1.1 |
|
1.5 |
|
2.2 |
|
|
|
|
|
Operation |
|
|
|
|
|
|
|
|
|
|
|
|
|
non-load |
|
|
8500 |
8500 |
8500 |
8500 |
8500 |
|
load |
|
|
1500 |
1500 |
1500 |
1500 |
1500 |
|
Total |
|
|
10000 |
10000 |
10000 |
10000 |
10000 |

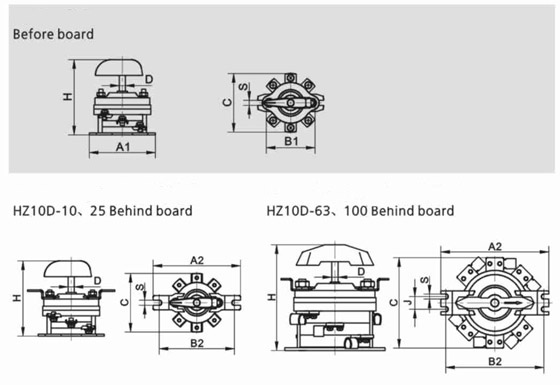

◆Dimensions and installation
|
Description |
Dimensions(mm)
|
Installation(mm)
|
| A1 |
A2 |
H |
D |
C |
B1 |
B2 |
S |
J |
|
HZ10D-10/1 |
65 |
86 |
62 |
Φ6 |
|
55 |
74 |
5 |
-- |
|
HZ10D-10/2 |
65 |
86 |
68 |
Φ6 |
|
55 |
74 |
5 |
-- |
|
HZ10D-10/3 |
65 |
86 |
74 |
Φ6 |
~58 |
55 |
74 |
5 |
-- |
|
HZ10D-16/1 |
65 |
86 |
62 |
Φ6 |
|
55 |
74 |
5 |
-- |
|
HZ10D-16/2 |
65 |
86 |
68 |
Φ6 |
|
55 |
74 |
5 |
-- |
|
HZ10D-16/3 |
65 |
86 |
74 |
Φ6 |
~58 |
55 |
74 |
5 |
-- |
|
HZ10D-25/2 |
100 |
114 |
98 |
8 |
|
90 |
100 |
6 |
-- |
|
HZ10D-25/3 |
100 |
114 |
108 |
8 |
～92 |
90 |
100 |
6 |
-- |
|
HZ10D-63/2 |
142 |
153 |
129 |
9 |
|
128 |
139 |
7 |
18 |
|
HZ10D-63/3 |
142 |
153 |
144 |
9 |
～154 |
128 |
139 |
7 |
18 |
|
HZ10D-100/3 |
142 |
153 |
152 |
9 |
～128 |
128 |
139 |
7 |
18 |
