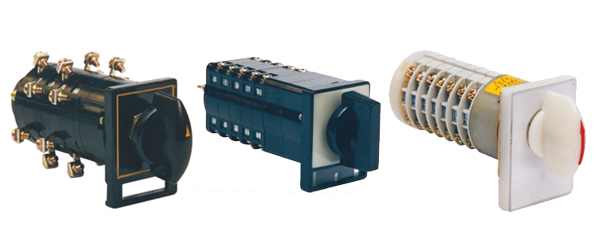

◆Introduction LWX1、LWX1B、LWX2 apply to electrcal eqipment,and various power distribution equipment for remote control,as well as for control of instruments,and control of motros.
◆Technical parameters
|
Description |
LWX1 |
LWX1B |
LWX2 |
|
Rated thermal currentITH |
A |
5 |
5 |
5 |
|
Rated working voltageUe |
V |
220 |
220 |
220 |
|
Rated working currentLe |
|
|
|
|
|
AC-15 |
A |
0.5 |
0.5 |
0.5 |
|
DC-13 |
A |
0.24 |
0.24 |
0.247 |
Mechnical life Mechanical life without load:0.3×10
6times,operation frequency is 120 times/h.
Mechanical life with load:AC-15为0.03×10
6times operation frequency is 120 times/h.
DC-13为0.01×10
6times operation frequency is 120 times/h.

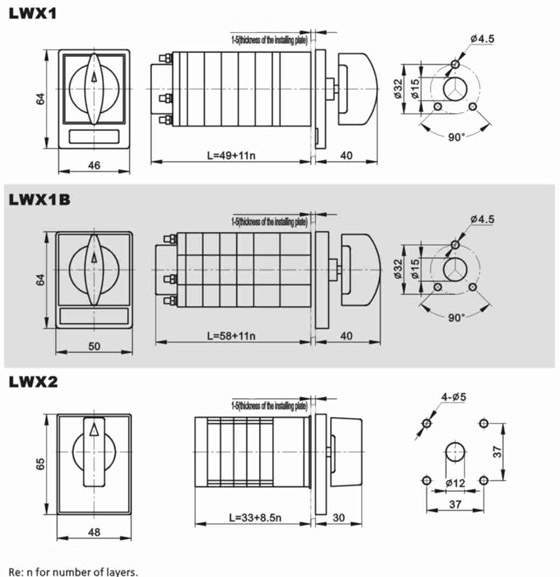

◆Dimensions and installation
