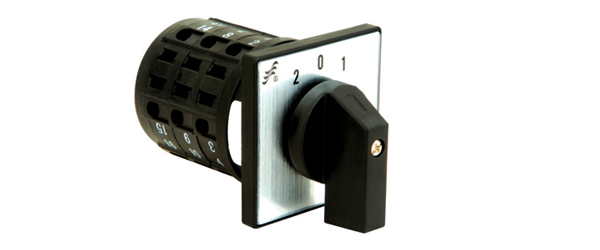

◆Introduction LW26D applied to control of machine,for change over of circuits,as well as other circuits where a change over of circuits are required.
The LW26D has finger prove prove terminals,which provides extra protections.
◆Technical paramenters
|
Rated thermal current |
ITH |
A |
10 |
|
Rated working voltage |
Ue |
V |
240 |
|
Rated working current |
Le |
|
|
|
AC-15 |
|
A |
2.5 1.5 |
|
DC-13 |
|
A |
0.27 |
Mechnical life Mechanical life without load:0.3×10
6times,operation frequency is 120 times/h.
Mechanical life with load:AC-150.1×10
6times operation frequency is 300 times/h.
DC-13为0.1×10
6times operation frequency is 300 times/h.

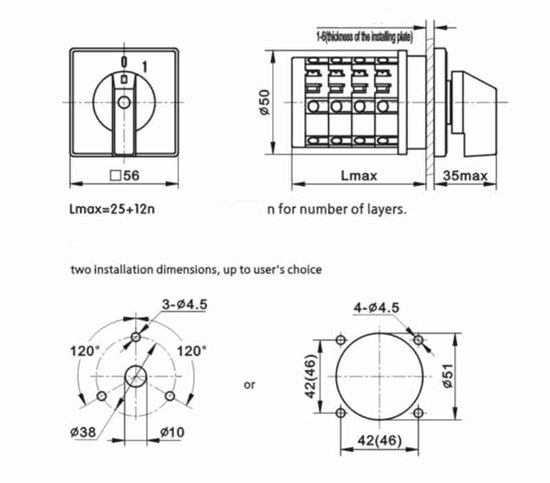

◆Dimensions and installation
