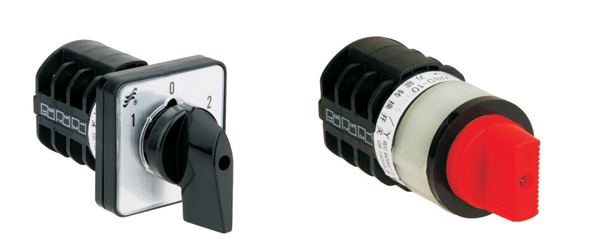

◆Introduction LW8D apply to change over of circuits,also for control of electrical measuring instruments and control of motors.
◆Technical parameters
|
Description |
LW8D-10 |
LW8D-20 |
| Rated thermal current |
ITH |
A |
10 |
20 |
| Rated working voltage |
Ue |
V |
240 |
250 |
380 |
240 |
250 |
380 |
| Rated working current |
Le |
|
|
|
|
|
|
|
| AC-15 |
|
A |
1.6 |
|
0.95 |
4.6 |
|
2.6 |
| AC3 |
|
A |
|
|
5 |
|
|
12 |
| DC-13 |
|
A |
|
0.14 |
|
|
0.27 |
|
Mechnical life Mechanical life without load:0.3×10
6times,operation frequency is 120 times/h.
Mechanical life with load:AC-15为0.1×10
6times operation frequency is 300 times/h
DC-13为0.1×10
6times operation frequency is 300 times/h

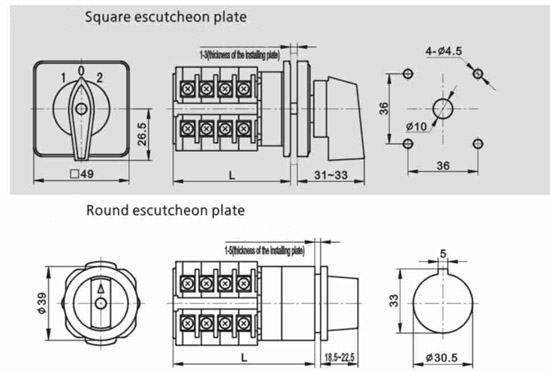

◆Dimensions and installation
|
Description |
L(mm) |
|
Square escutcheon plate |
Round escutcheon plate |
|
LW8D-10 |
22+10n |
35+10n |
|
LW8D-20 |
22+13n |
35+13n |
