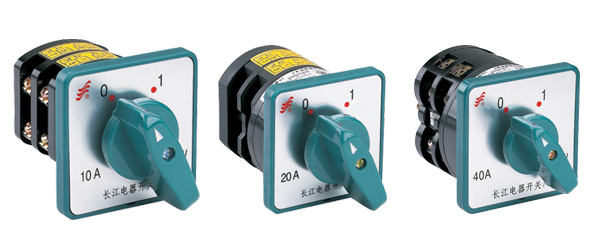

HZ5D series combination switches

◆Introduction
  HZ5D mainly used in the eletrical circuit as the power switch,and as a kind of switch for controlling of motor,also for change over of electrical circuits.
◆Technical paramenters
Description
HZ5D-10
HZ5D-20
HZ5D-40
Rated working voltage
Ue
V
440
440
440
Rated thermal current
ITH
A
10
20
40
Rated working current
Le
A
4
8
16
power
P
kW
1.7
4
7.5

Mechnical life
Mechanical life without load:0.1×106times,operation frequency is 120 times/h.
Mechanical life with load:AC-23为0.03×106 times operation frequency is 120 times/h.
AC-3为0.03×106 times operation frequency is 120 times/h.
AC-4为0.03×106 times operation frequency is 120 times/h.

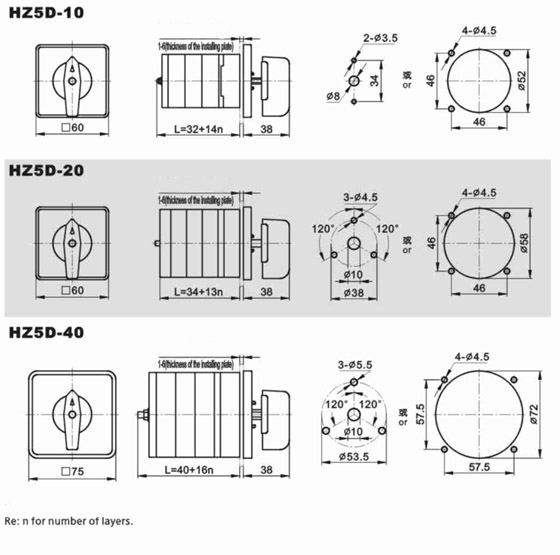

◆Dimensions and installation
