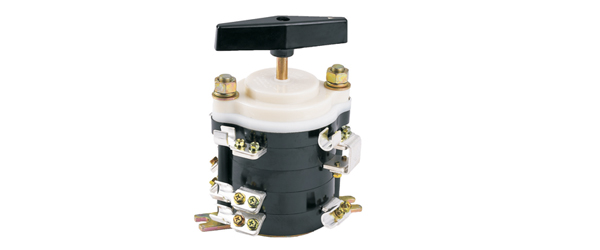

◆Introduction KDH series welding machine used for the control of the main switch BX3 series welding machine and for change over of coil turns,coil at the stalls,thus expanding the range of current regulation.Can also be used for other moving-coil transformers arc welding machine.
◆Technical parameters
|
Description |
KDH-125 |
KDH-160 |
KDH-200 |
| Rated thermal current |
Ith |
A |
125 |
160 |
200 |
| Operation |
|
|
0.01×106 |
0.01×106 |
0.01×106 |
| Operation frequency times /h |
|
|
120 |
120 |
120 |

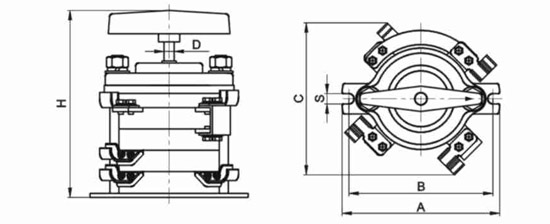

◆Dimensions and installation
|
Description |
Size |
| A |
B |
C |
D |
H |
S |
|
KDH-125 |
142 |
112 |
120 |
Φ9 |
170 |
7 |
|
KDH-160 |
155 |
142 |
142 |
Φ9 |
188 |
10 |
|
KDH-200 |
155 |
142 |
142 |
Φ9 |
193 |
10 |
