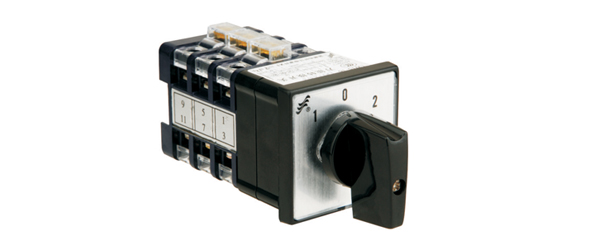

LW15 series rotary switches

◆Introduction
  LW15 applied to change over of circuits,also for direct control of motors.
◆Technical parameters
Description
LW15-16
Rated thermal current
ITH A   16
Rated working voltage
Ue V 240 250
380
Rated working current
Le

AC-15
  A 6
6
DC-13
  A   0.27
AC-3
  A
12
AC-4
  A
10
power
P

AC-3
  KW
5.5
AC-4
  KW
4.5

Mechanical life
Mechanical life without load:0.3×106times,operation frequency is 120 times/h.
Mechanical life with load::AC-15为0.1×106 times operation frequency is 300 times/h.
DC-13为0.1×106times operation frequency is 300 times/h.
AC-3为0.1×106times operation frequency is 120 times/h.
AC-4为0.1×106times operation frequency is 120 times/h.

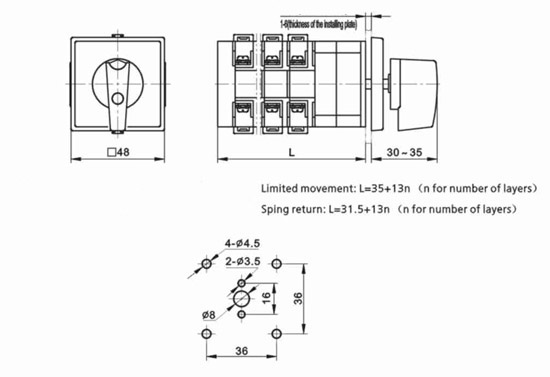

◆Dimensions and installation
