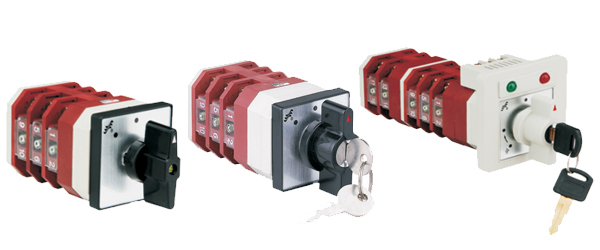

LW12 series rotary switches

◆Introduction
  LW12 apply to change over of circuits,also for control of electrical measuring in struments and control of motors.
◆Technical parameters
Rated insulation current
Ui
V

500
Rated thermal current
ITH
A
  16
Rated working voltage
Ue
V
220
380
Rted working current
Le

AC-15

A
4.6
2.6
DC-13

A
0.27
DC-3

A

12
DC-4

A

12

Mechnical life
Mechanical life without load:0.3×106times,operation frequency is 120 times/h.
Mechanical life with load:AC-15为0.1×106times operation frequency is 300 times/h.
DC-13为0.1×106times operation frequency is 300 times/h.
AC-3为0.1×106times operation frequency is 300 times/h.
AC-4为0.1×106times operation frequency is 120 times/h.

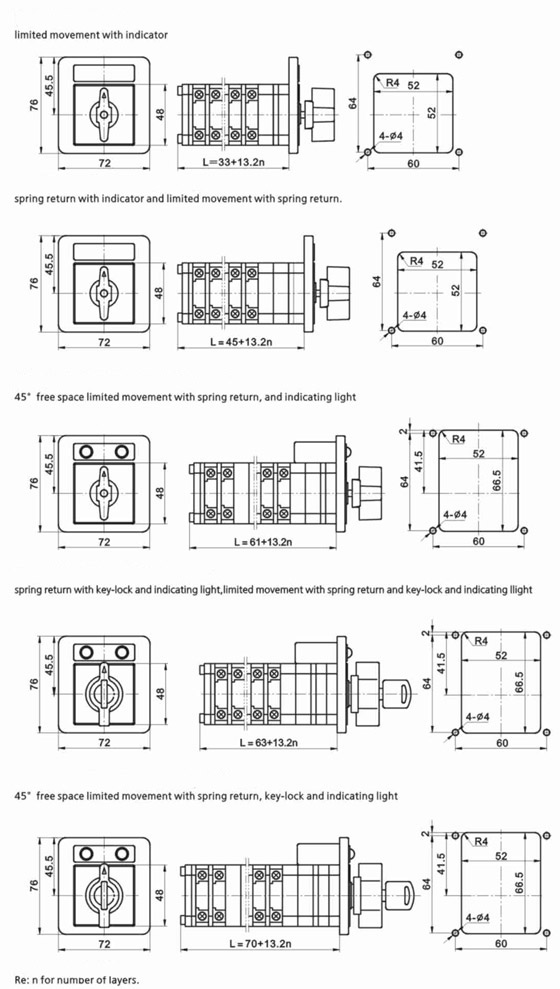

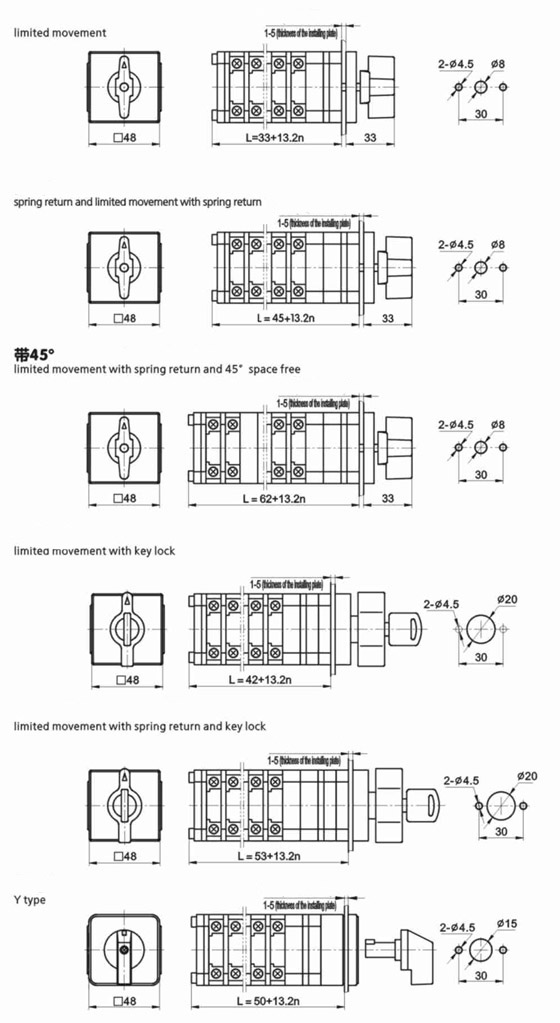

◆Dimensions and installation
